Coral Dev Board Micro Case

Provides protection and ease of use for the Coral Dev Board Micro and Coral add-on boards

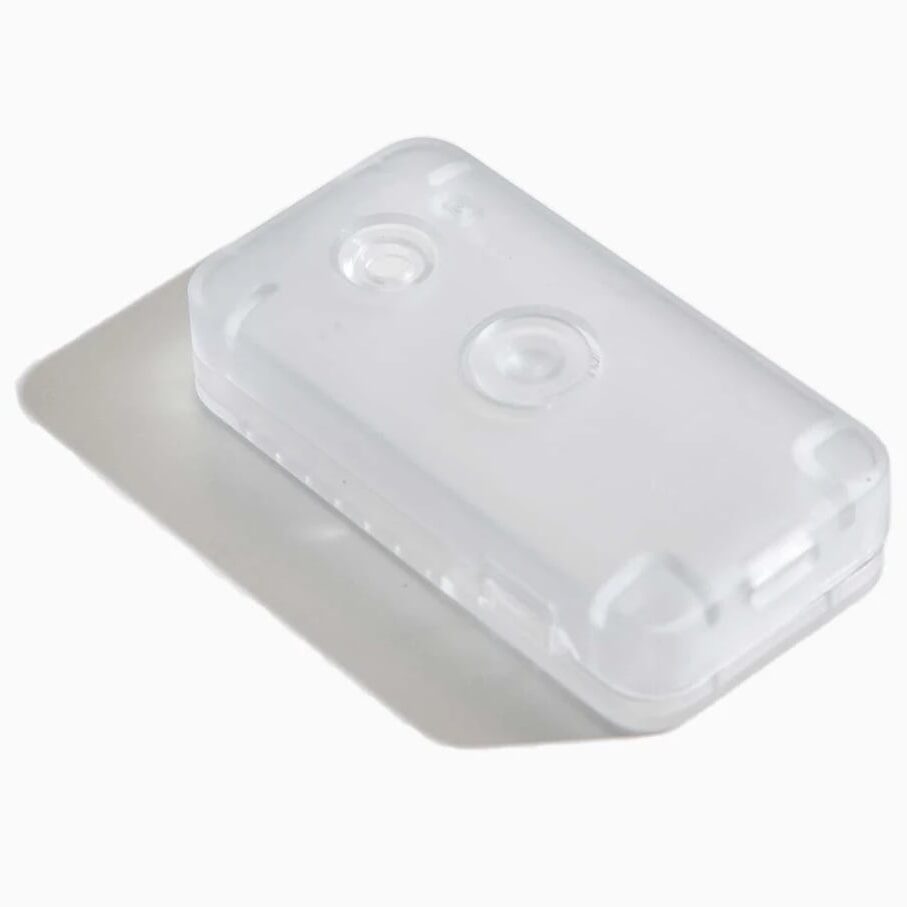

The Coral Dev Board Micro Case is a plastic enclosure that provides minimal protection for the Coral Dev Board Micro.

Each purchase includes two cases: the standard case accommodates the Dev Board Micro alone or with the Coral Wireless Add-on board, and the PoE case accommodates the Dev Board Micro with the Coral PoE Add-on board.

Please contact us for educational discounts & advice.

Buy from our resellers
Buy at buyzero.de (pi3g official shop)
volume inquiry
Tech Specs
Tech Specs

The Coral Dev Board Micro Case is actually a set of two plastic enclosures:

  • the standard case accommodates the Dev Board Micro alone or with the Coral Wireless Add-on board
  • and the PoE case accommodates the Dev Board Micro with the Coral PoE Add-on board.

These compact cases provide additional convenience and comfort in handling the Dev Board Micro, and some protection for the on-board camera on the Dev Board Micro. You can also still access the GPIO ports through cutaway covers.

Do you need to interact with the board, or power cycle it? Simply push the top user button - this case has a flap at the required position.

The case is translucent, with an optically clear lens cover.

Note: this case set is not intended for outdoor usage or wet environments, as it is not water-proof.

The Coral Dev Board Micro is sold separately.

Technical Specifications

Dimensions:

  • Standard case: 73mm x 36mm x 16.5mm
  • PoE case: 73 mm x 26 mm x 27.5mm

Mounting Options:

  • Standard case: Flat back to allow adhesive tape
  • PoE case: 1/4-20 threaded insert for tripod mount

Button Access:

  • Press button for the top user button, Pin hole for the side reset button

GPIO Access:

  • Cutaway covers

Camera Protection:

  • Optically clear lens cover

Google part number: G730-06370-01
